Motivation

This project aims to test out how to integrate Debezium, Kafka and Spring Boot all together.

We all have experienced where we wanted to keep track of the changes in the database, but polling doesn't sound right, it is wasting resources and ineffecient. Change Data Capture (CDC) is the solution, where changes from the database is picked up and published to the MQ for the services to further process the changes.

The following project simulate a simple ordering system, any create, update, delete of records will be captured by Debezium and published to Kafka.

Description

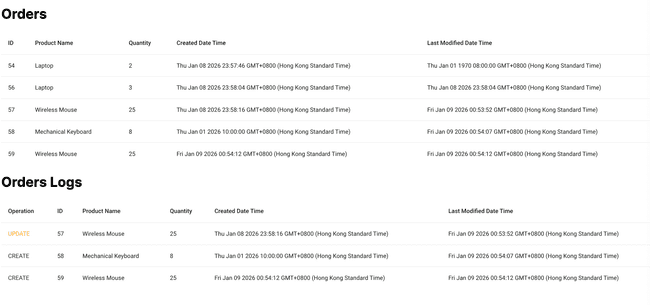

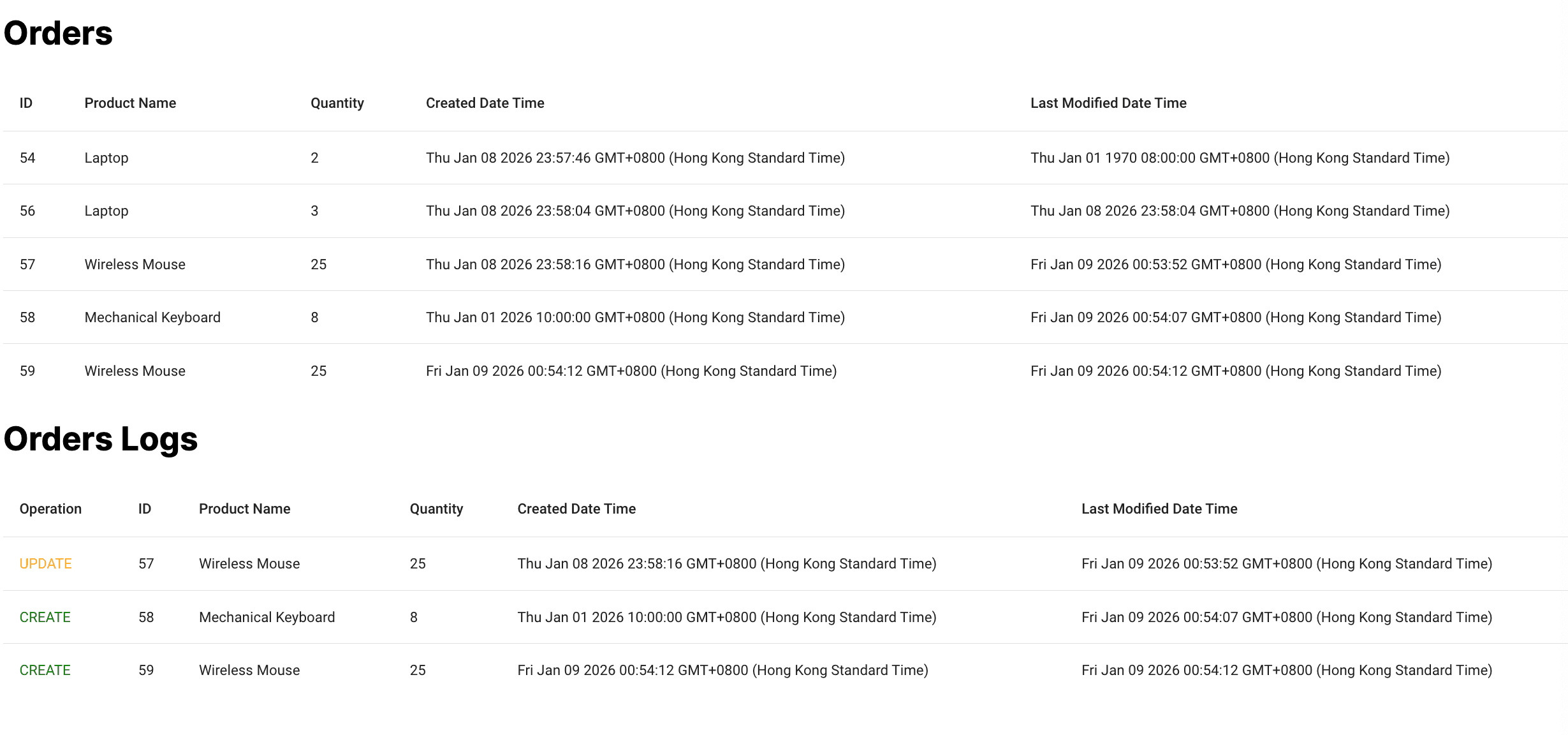

Orders is showing the latest orders
Orders Logs is showing the history of changes in the database table

Demo

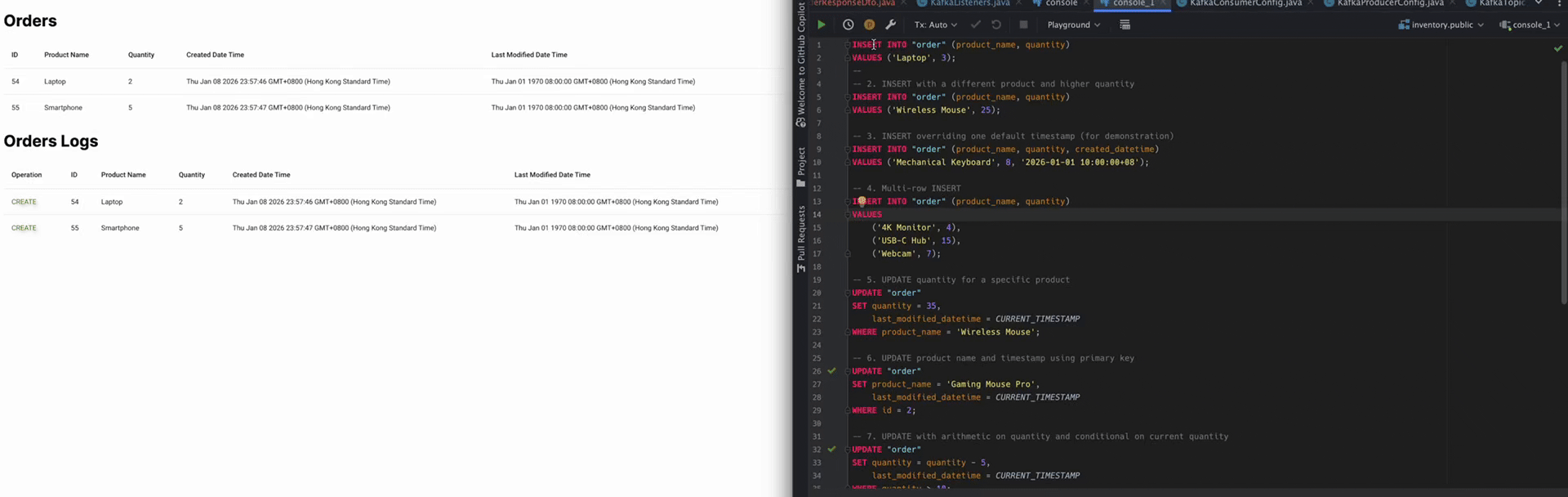

The following video shows how the changes in database is monitored by Debezium, published to Kafka, pushed to Spring Boot, and finally streamed to Angular via Websocket

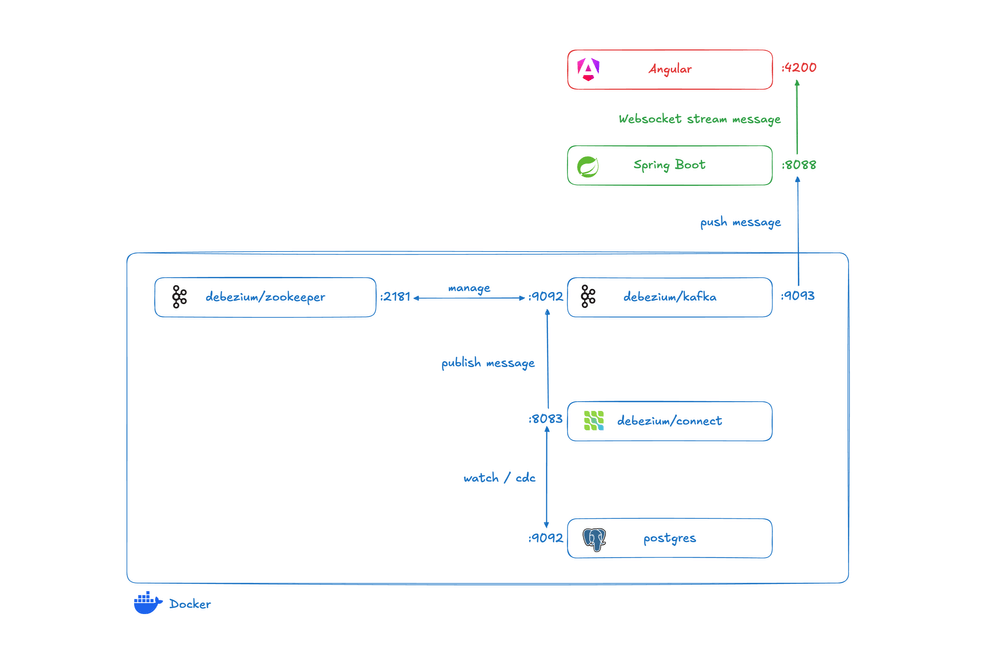

Docker container services and ports

debezium/zookeeper:2.5 [:2181, :2888, :3888] Standard Zookeeper tailored for Debezium/Kafka setups

debezium/kafka:2.5 [:9092 (for inside docker), :9093 (for outside docker)] Apache Kafka image customized for Debezium workflows

debezium/connect:2.5 [:8083] Kafka Connect base pre-loaded with all official Debezium connectors

postgres:15 [:5432] Database

Local machine services and ports

Spring Boot [:8088]

Angular [:4200]
